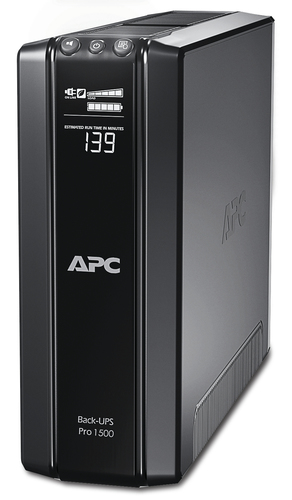

APC Back-UPS Pro Line-Interactive 1.5 kVA 865 W 10 AC outlet(s)
Product Technical Specification
Features | |
UPS topology | Line-Interactive |
Output power capacity | 1.5 |
Output power | 865 |
Waveform | Sine |
Input operation voltage (min) | 156 |
Input operation voltage (max) | 300 |
Input frequency | 50/60 |
Output frequency regulation | 50/60 |
Automatic Voltage Regulation (AVR) | Yes |
Surge energy rating | 441 |
Hold time (min) | 10 |
Hold time (max) | 12 |
Efficiency | 98.9 |
Crest factor | 3:1 |
Noise level | 45 |
Surge protection | Yes |
Surge protection features | Digital Subscriber Line (DSL),Fax,Modem,Network,Telephone |
Audible alarm(s) | Yes |
Audible alarm modes | Low battery alarm,Overload alarm |
Ports & interfaces | |
AC outlet types | C13 coupler |
Power plug | C14 coupler |
AC outlets quantity | 10 |
Number of output IEC jumpers | 2 |
USB port | Yes |
Battery | |
Battery technology | Sealed Lead Acid (VRLA) |
Battery capacity | 187 |
Typical backup time at full load | 3.7 |
Typical backup time at half load | 12.4 |
Battery life (max) | 5 |
Battery recharge time | 8 |
Hot-swap battery | Yes |
Automatic battery test | Yes |
Cold start | Yes |
Replacement battery cartridge | APCRBC124 |
Design | |
Product colour | Black |
Display type | LCD |
Certification | A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -15 - 40 |
Operating relative humidity (H-H) | 0 - 95 |
Storage relative humidity (H-H) | 0 - 95 |
Operating altitude | 0 - 9000 |
Non-operating altitude | 0 - 15000 |
Technical details | |
Sustainability certificates | RoHS,ENERGY STAR |
Weight & dimensions | |
Width | 112 |
Depth | 380 |
Height | 301 |
Weight | 12700 |
Package width | 238 |
Package depth | 488 |
Package height | 387 |
Package weight | 14300 |
Packaging data | |
Cables included | Phone (RJ-11),USB cable |
Manual | Yes |
Warranty card | Yes |
Software CD | Yes |
Bundled software | PowerChute Personal Edition |
Logistics data | |
Products per pallet | 20 |
Products per master (outer) case | 1 |
Other features | |
Nominal output voltage | 230 |
Nominal input voltage | 230 |
Packaging content |
Delivery Options
Economy Delivery (UK)
Business Express
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
