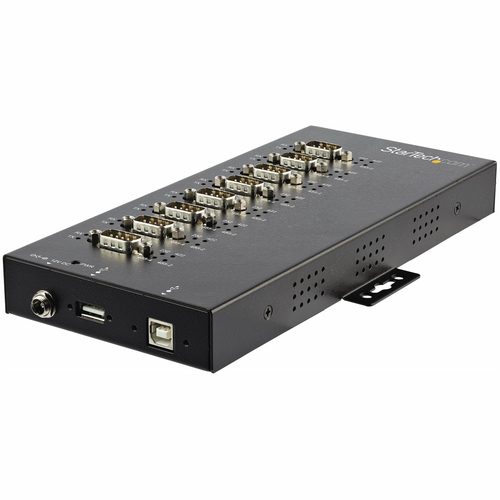

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
Product Technical Specification
Ports & interfaces | |
Host interface | USB 2.0 |
Hub interfaces | Serial |
USB 2.0 ports quantity | 2 |
Ports quantity | 8 |
RS-232 ports | 8 |
Features | |
Product colour | Black |
Housing material | Steel |
Surge protection | Yes |
LED indicators | Power |
Power | |
Power source type | AC |
Power consumption (typical) | 36 |
Input voltage | 100 - 240 |
Input current | 1 |
Output voltage | 12 |
Output current | 3 |
Power plug type | Type M |
System requirements | |
Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
Linux operating systems supported | Yes |
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
Weight & dimensions | |
Width | 128 |
Depth | 219 |
Height | 25 |
Weight | 688 |
Packaging data | |
Package width | 190 |
Package depth | 290 |
Package height | 67 |
Package weight | 1600 |
Packaging content | |
AC adapter included | Yes |
Included power plug types | ANZ,EU,UK,US |
Cables included | USB |
DIN rail kit included | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 55 |
Storage temperature (T-T) | -20 - 85 |
Operating relative humidity (H-H) | 5 - 95 |
Performance | |
Data bits | 7,8 |
Stop bits | 1,2 |
Parity bit | Even,Mark,N,Odd,Space |
Baud rate | 921.6 |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | CE,RoHS |
Logistics data | |
Master (outer) case width | 410 |
Master (outer) case length | 420 |
Master (outer) case height | 275 |
Products per master (outer) case | 14 |
Harmonized System (HS) code | 84719000 |
Other features | |
Chipset | FTDI - FT4232H, Genesys Logic - GL825 |
Delivery Options

Economy Delivery (UK)

Business Express
Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols
The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.
The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 8 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports
- 8 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers
- MOUNTING OPTIONS: This metal mountable 8-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets
