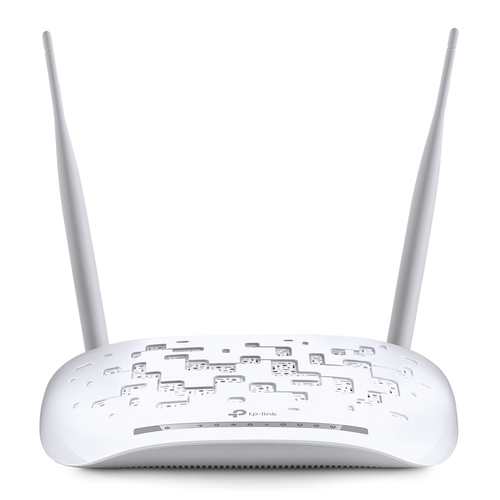

TP-Link 300Mbps Wireless N USB VDSL/ADSL Modem Router
Product Technical Specification
WAN connection | |
Ethernet WAN | Yes |
DSL WAN | Yes |
SIM card slot | No |
3G/4G USB modem compatibility | No |
WAN connection type | RJ-45 |
Wireless LAN features | |
Wi-Fi band | Single-band (2.4 GHz) |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
WLAN data transfer rate (max) | 300 |
Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
Network | |
Ethernet LAN | Yes |
Ethernet LAN interface type | Fast Ethernet |
Ethernet LAN data rates | 10,100 |
Cabling technology | 10/100Base-T(X) |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
Port forwarding | Yes |
Dynamic DNS (DDNS) | Yes |
VPN tunnels quantity | 10 |
VPN Passthrough | Yes |
VPN support | PPTP, L2TP, IPSec Pass-through |
DSL features | |
VDSL2 | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
RJ-11 ports quantity | 1 |
Management features | |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Reset button | Yes |
WPS push button | Yes |
Security | |
Security algorithms | 128-bit AES,128-bit WEP,192-bit AES,256-bit AES,3DES,64-bit WEP,DES,MD5,SHA-1,WPA,WPA-PSK,WPA2,WPA2-PSK |
Stateful Packet Inspection (SPI) | Yes |
Filtering | Yes |
MAC address filtering | Yes |
IP address filtering | Yes |
URL filtering | Yes |
DMZ support | No |
Network address translation (NAT) | Yes |
Protocols | |
DHCP client | Yes |
Universal Plug and Play (UPnP) | Yes |
Design | |
Product colour | White |
Wall mountable | Yes |
LED indicators | Yes |
On/off switch | Yes |
Product type | Tabletop router |
Antenna | |
Antenna type | External |
Antenna gain level (max) | 5 |
Antennas quantity | 2 |
Features | |
Firmware upgradeable | Yes |
Certification | CE, FCC, RoHS |
Power | |
Power source type | DC |
Output voltage | 12 |
Output current | 1 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -40 - 70 |
Operating relative humidity (H-H) | 10 - 90 |
Storage relative humidity (H-H) | 5 - 90 |
System requirements | |
Windows operating systems supported | Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows XP |
Linux operating systems supported | Yes |
Mac operating systems supported | macOS |
Weight & dimensions | |
Width | 195 |
Depth | 130 |
Height | 36 |
Packaging data | |
Cables included | LAN (RJ-45),Phone (RJ-11) |
AC adapter included | Yes |
Quick start guide | Yes |
Package width | 260 |
Package depth | 232 |
Package height | 70 |
Package weight | 550 |
Other features | |
WLAN data transfer rates supported | 300 |
Frequency range | 2.4 - 2.4835 |
USB ports quantity | 1 |
USB version | 2.0 |
xDSL connection | Yes |
Delivery Options

Economy Delivery (UK)

Business Express
TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.
USB Sharing Port – Easy Sharing
Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.
Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
Up to 100Mbps broadband speed
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.
Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
