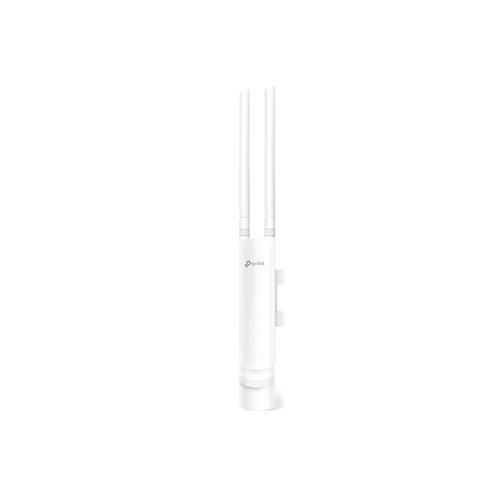

TP-Link EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
Product Technical Specification
Features | |
2.4 GHz | Yes |
5 GHz | Yes |
Maximum data transfer rate | 1200 |
Maximum data transfer rate (2.4 GHz) | 300 |
Maximum data transfer rate (5 GHz) | 867 |
Ethernet LAN data rates | 10,100,1000 |
Frequency band | 2.4 - 5 |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u |
MIMO | Yes |
MIMO type | Multi User MIMO |
Rate limiting | Yes |
Airtime Fairness (ATF) | Yes |
Security | |
Security algorithms | 802.1x RADIUS |
Number of SSID supported | 16 |
Management features | |
Web-based management | Yes |
Syslog | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
Power over Ethernet (PoE) | Yes |
Output voltage | 24 |
Power consumption (typical) | 10.5 |
Design | |
Placement | Ceiling,Wall |
Product colour | White |
Reset button | Yes |
Antenna | |
Antenna type | External |
Antenna direction type | Omni-directional |
Antenna features | Detachable antenna |
Antennas quantity | 2 |
Antenna gain level (max) | 4 |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | -30 - 70 |
Storage temperature (T-T) | -40 - 70 |
Storage relative humidity (H-H) | 5 - 90 |
Weight & dimensions | |
Width | 215 |
Depth | 46 |
Height | 27 |
Packaging data | |
Number of products included | 1 |
AC adapter included | Yes |
Mounting kit | Yes |
Quick start guide | Yes |
Delivery Options

Economy Delivery (UK)

Business Express
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
Features | |
2.4 GHz | Yes |
5 GHz | Yes |
Maximum data transfer rate | 1200 |
Maximum data transfer rate (2.4 GHz) | 300 |
Maximum data transfer rate (5 GHz) | 867 |
Ethernet LAN data rates | 10,100,1000 |
Frequency band | 2.4 - 5 |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u |
MIMO | Yes |
MIMO type | Multi User MIMO |
Rate limiting | Yes |
Airtime Fairness (ATF) | Yes |
Security | |
Security algorithms | 802.1x RADIUS |
Number of SSID supported | 16 |
Management features | |
Web-based management | Yes |
Syslog | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
Power over Ethernet (PoE) | Yes |
Output voltage | 24 |
Power consumption (typical) | 10.5 |
Design | |
Placement | Ceiling,Wall |
Product colour | White |
Reset button | Yes |
Antenna | |
Antenna type | External |
Antenna direction type | Omni-directional |
Antenna features | Detachable antenna |
Antennas quantity | 2 |
Antenna gain level (max) | 4 |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | -30 - 70 |
Storage temperature (T-T) | -40 - 70 |
Storage relative humidity (H-H) | 5 - 90 |
Weight & dimensions | |
Width | 215 |
Depth | 46 |
Height | 27 |
Packaging data | |
Number of products included | 1 |
AC adapter included | Yes |
Mounting kit | Yes |
Quick start guide | Yes |
