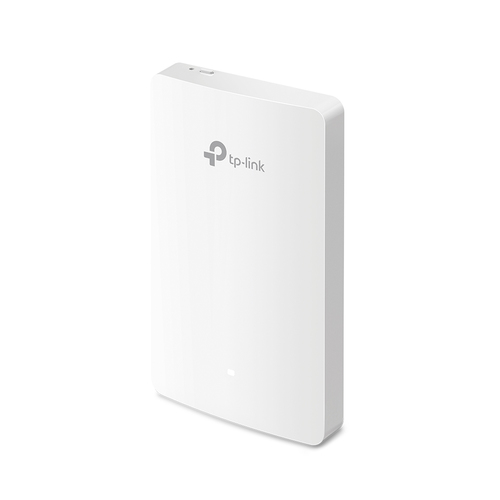

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
Product Technical Specification
Features | |
2.4 GHz | Yes |
5 GHz | Yes |
6 GHz | No |
Maximum data transfer rate | 867 |
Maximum data transfer rate (2.4 GHz) | 300 |
Maximum data transfer rate (5 GHz) | 867 |
Ethernet LAN data rates | 10,100,1000 |
Frequency band | 2.4 - 5 |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
Cabling technology | 10/100/1000Base-T(X) |
Automatic channel selection | Yes |
Automatic channel scanning | Yes |
MIMO | Yes |
MIMO type | Multi User MIMO |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
VLAN support | Yes |
Rate limiting | Yes |
Wireless isolation | Yes |
Quality of Service (QoS) support | Yes |
Security | |
Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,802.1x RADIUS,HTTPS,SNMP,SNMPv3,SSH,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK |
MAC address filtering | Yes |
Number of SSID supported | 16 |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Access Control List (ACL) | Yes |
Protocols | |
Universal Plug and Play (UPnP) | Yes |
Management features | |
Web-based management | Yes |
Syslog | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
WAN connection | Ethernet (RJ-45) |
Power | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) type supported | Active PoE,Passive PoE |
Power consumption (typical) | 24.4 |
Design | |
Placement | Wall |
Product colour | White |
Reset button | Yes |
LED indicators | LAN,Power,Status,WAN,WLAN |
Antenna | |
Antenna type | Internal |
Antennas quantity | 2 |
Antenna gain level (max) | 4 |
Weight & dimensions | |
Width | 143 |
Depth | 86 |
Height | 20 |
Packaging data | |
Package type | Box |
Packaging content | |
Number of products included | 1 |
Mounting kit | Yes |
Quick start guide | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -40 - 70 |
Storage relative humidity (H-H) | 5 - 90 |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Delivery Options

Economy Delivery (UK)

Business Express
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
